KRYMSKAYA EMBANKMENT BY WOWHAUS

Krymskaya莫斯科河的堤防景觀設計概念 (中文翻譯於頁下方)
Location: Moscow, Russia (莫斯科)
Architects: Wowhaus Architecture Bureau


Location: Moscow, Russia
Architects: Wowhaus Architecture Bureau
Architect In Charge: Maria Gulida, Alena Zaytseva, Roman Kuchukov, Darya Melnik, Tatyana Polyakova, Anna Proshkuratova, Anastasia Rychkova, Tatiana Skibo, Yarmarkina; with the participation of Yuriy Belov, Anna Karneeva, Olga Lebedeva, Anastasia Maslova
Bureau Partners: Dmitry Likin, Oleg Shapiro
Leading Project Architect: Mikhail Kozlov
Landscape: Anya Andreyeva-Alphabet City
Lighting: Anna Harchenkova
Area: 45000.0 sqm
Photographs: Courtesy of Wowhaus, Anya Andreyeva, Lisa Gracheva, Alex Minchenko, Ольга Вознесенская The Krymskaya embankment of the Moskva river, only recently separated from the Muzeon park and the Central House of Artists, has been transformed in an urban park with a landscape park with distinct transit and sport features while preserving the artists’ exhibition zone.

噴泉已經建立，波浪形的藝人展館已經取代了混亂的展覽面積

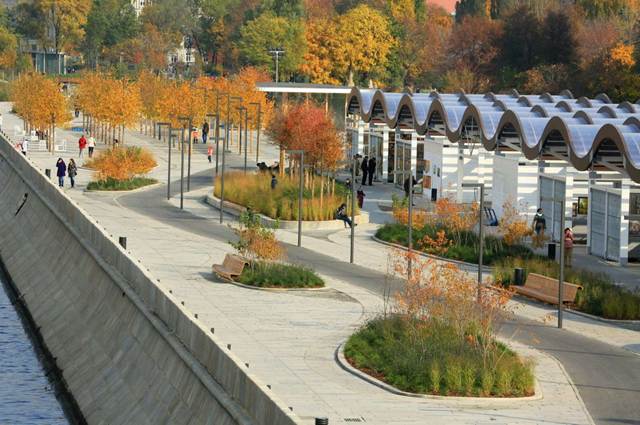

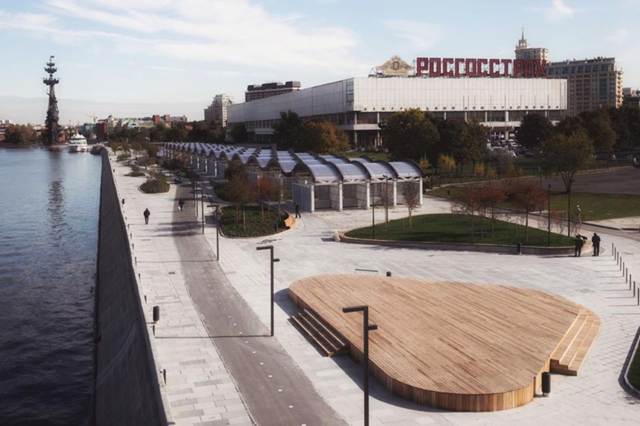

What once was a road has turned into a lane for pedestrians and bicycles. Fountains have been set up, wave-shaped artist pavilions have replaced a chaotic exhibition area and small hills with benches scattered about have become part of the landscape park thus extending a green strip from Gorky park on the other side of the Krymsky

堤岸的核心設計元素是波：波浪形的長凳，行人和騎自行車的波創造一個人工景觀。該園區分為四個部分：一區在橋的前面，一個藝術家圍繞“Vernisage”亭，噴泉廣場和“綠山”地帶。在規劃每個區域觀點也被考慮。
The central design element of the embankment is the wave: wave-shaped benches, pedestrian and cycling waves create an artificial landscape. The park zone was divided into four parts: an area in front of the bridge, an artists’ zone around a “Vernisage” pavilion, the Fountain Square and “Green Hills”. When planning each zone, the view from the other bank was also considered.

Krymsky橋(橋下)
一個中轉區連接高爾基公園與Krymsky堤防已經成為一個熱門景點，並提供避雨，現在一個階段，兩個木露天劇場相繼建成。 28個人造岩石和金屬長椅從內部被照亮前進的道路.

Under the Krymsky Bridge

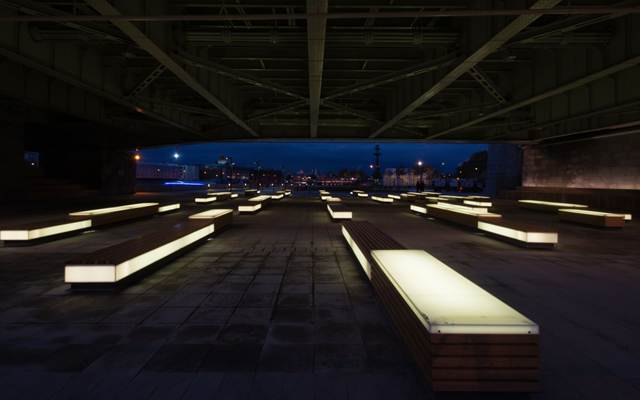

A transit zone connecting Gorky Park with the Krymsky embankment has become a popular spot and also provides shelter from the rain now that a stage, and two wooden amphitheatres have been built. 28 artificial rock and metal benches illuminated from the inside are scattered along the way as an amenity for pedestrians and cyclists from Muzeon to Gorky park.

開幕酒會區

Muzeon的入口是一個210米開幕酒會木有波浪形的屋頂（亭子是由阿瑟建築師設計） 。

Vernissage zone

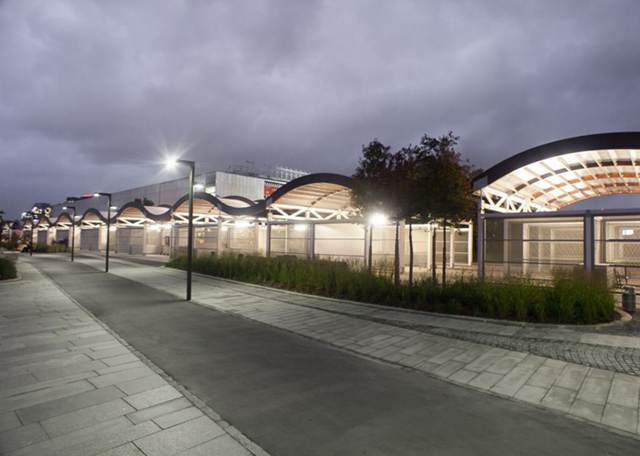

The entrance of Muzeon is a 210 meter wooden vernissage with a wave-shaped roof (the pavilion was designed by Asse Architects).

噴泉區

噴泉噴射，長60米，寬14米，是為所謂的“乾”噴泉的選擇之一，當水的邊緣與鋪路水平。噴泉具有動態照明的內部系統，使各種照明模式。 49菩提樹種植了一種特殊的種植技術，在俄羅斯首次使用時，允許步行和騎自行車在這些車道，而不會造成損壞樹木。

Fountain zone

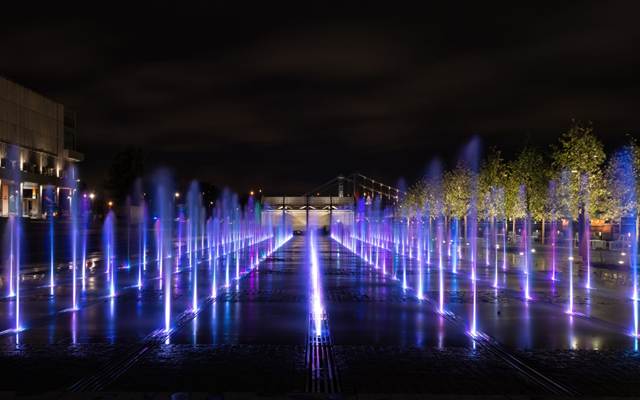

A fountain jet, 60 metres long and 14 metres wide, is one of the options of the so called ”dry” fountains when the edge of the water is level with the paving. The fountain has an internal system of dynamic lighting that allows various lighting patterns. 49 lindens were planted with a special planting technology, used in Russia for the first time, allows walking and cycling on these lanes without causing damage to the trees.

“青山”

專為散步和休息的山.佈置主要是草原植物。樹木和灌木裝飾冠像菩提樹，山楂，花楸樹和觀賞蘋果樹種植.那裡可以思考和欣賞風景的小山。人工救援區是由波浪形的木製長椅和沙灘床建構，“切”成步行車道之間的丘陵。此外，還有一個人工的池塘在這公園。

“Green Hills”

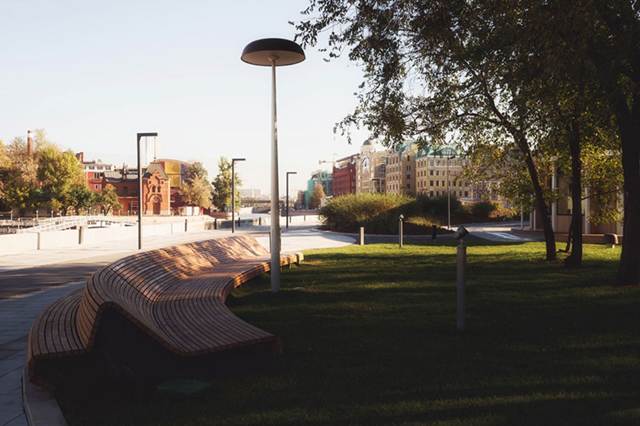

Hills designed for walking and resting were furnished mainly with steppe plants. Trees and bushes with decorative crowns like lindens, hawthorns, rowan trees and ornamental apple trees were planted on hills from where one can contemplate and admire the scenery. The artificial relief is accentuated by wave-shaped wooden benches and beach beds that are “cut” into hills between walking lanes. There is also an artificial pond in this part of the park.

亭子

按照項目上有Krymskaya堤防三個亭，第四個將在2013年底完成，屆時將取代一個加油站。展團將被用作咖啡館，商店和自行車租賃服務。最接近第三Folutvinsky車道的自行車租賃亭.配備了一塊混凝土屋頂斜坡自行車或滑板，由羅馬Kuchukov設計。

Pavilions

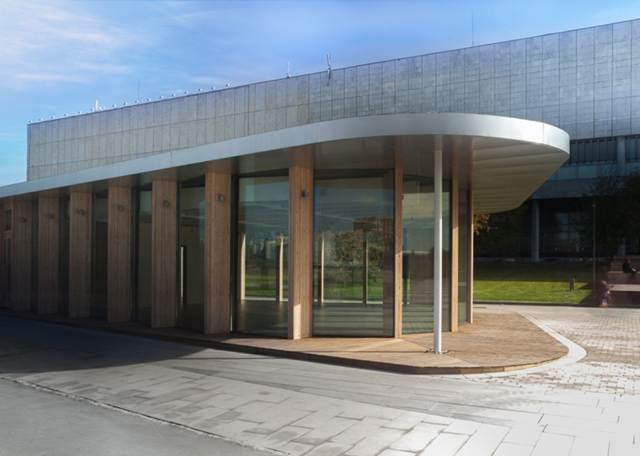

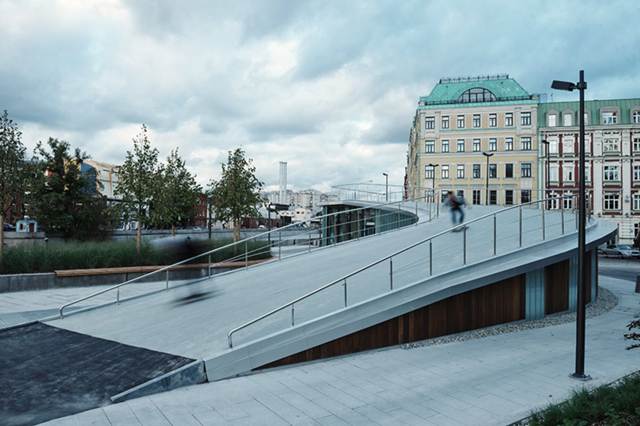

In accordance with the bureau’s project there are three pavilions on the Krymskaya embankment, the fourth one will be completed by the end of 2013 and will replace a gas station. Pavilions will be used as cafes, stores and bike rentals. The bike rental pavilion closest to the 3rd Folutvinsky lane is equipped with a concrete roof ramp for bikes or skateboards, designed by Roman Kuchukov.

照明解決方案

為了使園區為客人提供每天24小時並有吸引力，規劃考慮到了夜間照明，某些景觀元素特別是照明。那些山上的植物中安裝在群體觀賞燈照亮的區域，並創建一個醒目的視覺。所有的車道照明，以及讓行人和騎自行車者不迷路結合了噴泉噴頭與常規行椴胡同的柔和暖白光照明的動態彩色燈光照明組成。在Krymskaya堤每個展館由內而外照射，使其成為一個安全的地方，同時也作為公園的照明元素

Lighting solutions

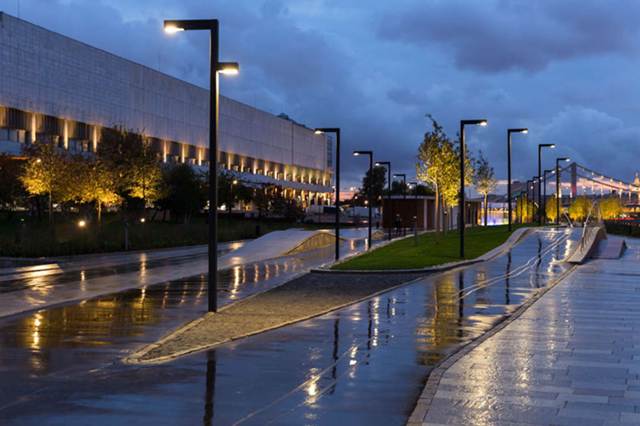

To make the park accessible and attractive for guests 24 hours a day, planning takes into account night time illumination, especially the point lighting of certain landscape elements. Ornamental lamps that are installed in groups among plants on the hills illuminate the area and create a striking visual. All the lanes are illuminated as well so that pedestrians and cyclists do not get lost.

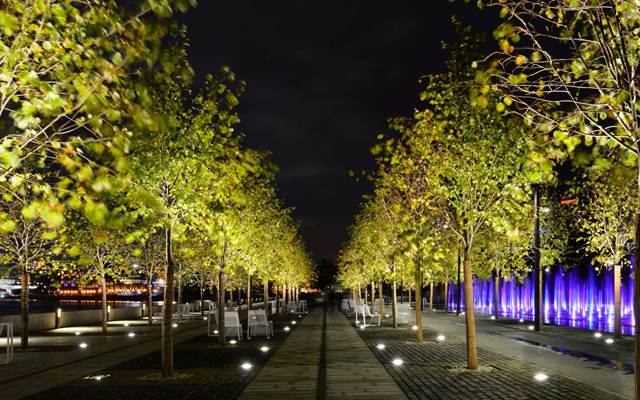

On the Fountain Square the “dry” fountain together with the linden alley make up a lighting composition that combines the dynamic colour lighting of the fountain jets with the softer warm-white illumination of the regular rows of the linden alley. Every pavilion on the Krymskaya embankment is illuminated from the inside, making it a safe place while also serving as a lighting element of the park.

Krymskaya莫斯科河的堤防，最近才從Muzeon公園和中央眾議院藝術家獨立分離， 已經轉化為城市景觀公園.具有獨特的交通和運動特性，同時保留了藝術家的展覽區。

曾經是Krymskaya堤防，最近才從Muzeon公園和中央眾議院藝術分離，從一條堤防路變成了一個車道供應行人和自行車使用。

噴泉已經建立， 波浪形的藝人展館已經取代了混亂的展覽情況. 在Krymskaya堤鏈接到在Vorobievy 裡開始， 一個景觀公園具有獨特的交通 和運動功能替代道路，同時保留了 藝術家的展覽區.並提供大約10公里的行人和騎自行車的路線。

噴泉具有動態照明的內部系統，使用各種照明模式。植物中安裝觀賞燈.照亮了區域，並創建一個醒目的視覺.
49顆菩提樹種植在一個典型的法國公園上。一個特殊的種植技術，在俄羅斯首次使用時，允許步行和騎自行車在這些車道上而行駛不會造成損壞樹木。

所有展館配備了大量玻璃，有的人甚至用結構玻璃的形狀 - (U形鋼化玻璃具有較高的承載能力)
